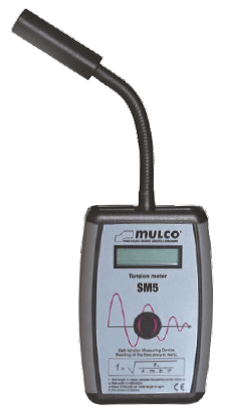

MULCO TSM5-F Universal Belt Tension Meter with flexible sensor head

The TSM5-F is a pocket size belt tension meter with a flexible sensor head allowing measurement in difficult access situations. The TSM5-F measures the static tension of all common Toothed, Vee, Flat and Multi-rib belts. The correct static tension (pretension) has a positive influence on the working life, bearing loads, noise levels and positioning accuracy of any belt drive.

The TSM5-F is designed to measure static tension of a belt by determining the natural frequency of vibration of the belt under tension.

Supplied with long-life 9V alkaline battery, protective leatherette case and transport case with instructions

Frequency range: from 7Hz to 400Hz Accuracy: +/-5%
CE Marked
