| Code | Material | Pitch Module | No. Teeth | dp (mm) | de (mm) | dm (mm) | Bore H7 | Bore H9 | F (mm) | Lm (mm) | A (mm) | A+V (mm) | S (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

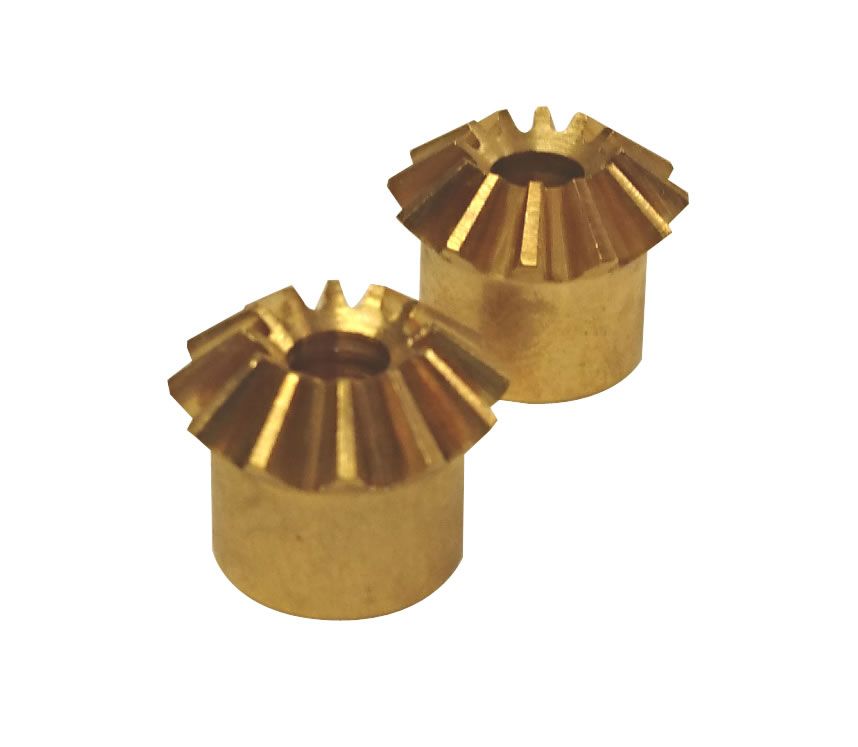

BBM10/12
|
Brass | 1 | 12 | 12 |
13.4
|
10 | 4 | 4 |
6.2
|
10.4
|
13.2
|
1.4
|
|
|
BBM10/16
|
Brass | 1 | 16 | 16 |
17.4
|
12 | 5 | 5 | 5 | 11 | 15.1 | 1 | |
|
BBM10/20
|
Brass | 1 | 20 | 20 |
21.4
|
15 | 5 | 5 | 5 | 11 | 17.1 |
1.5
|
|
|
BBM10/25
|
Brass | 1 | 25 | 25 |
26.4
|
16 | 5 | 5 | 7 | 13 | 21.5 |
1.5
|
|
|
BBM10/30
|
Brass | 1 | 30 | 30 |
31.4
|
16 | 5 | 5 | 7 | 13 | 24 |
1.5
|
|
|
BBM10/36
|
Brass | 1 | 36 | 36 |
37.4
|
16 | 5 | 5 | 7 | 13 | 26.9 |
1.5
|
|
|
BBM10/40
|
Brass | 1 | 40 | 40 |
41.4
|
20 | 5 | 5 | 8 | 14 | 29.9 |
1.5
|
|
|
ZBM10/16
|
Die Cast Zinc
|
1 | 16 | 16 |
17.3
|
12 | 6 | 4.5 | 7.5 | 13.1 | 17.7 | 0 | |
|
ZBM15/16
|
Die Cast Zinc
|
1.5
|
16 | 24 | 26 | 19 | 8 | 6.7 | 10.8 | 18.6 | 25.7 | 1.6 | |
|
ZBM20/16
|
Die Cast Zinc
|
2 | 16 | 32 |
34.6
|
23 | 10 | 9.6 | 10 | 21.3 | 30 | 2.1 | |
|
ZBM25/16
|
Die Cast Zinc
|
2.5
|
16 | 40 |
43.3
|
26 | 12 | 12 | 12 | 25.5 | 36 | 2.6 | |
|
ZBM30/16
|
Die Cast Zinc
|
3 | 16 | 48 |
52.3
|
30 | 14 | 14 | 13 | 29.3 | 42.5 | 3.3 | |
|
ZBM35/16
|
Die Cast Zinc
|
3.5
|
16 | 56 |
61.5
|
34 | 16 | 16 | 14 | 33.2 | 49.4 | 4.1 |
Please note: All dimensions subject to change. If a dimension is critical to your application please contact our Sales Department for confirmation. For special or reworked gears please contact our Manufacturing Department for a quotation.
